A winch is a motor-driven rotating spool able to tighten or loosen cable. The cable will usually have a hook on the end. A winch is usually mounted on the front or rear bumper of a vehicle but can also be mounted at the front of a trailer.
Product Specification:

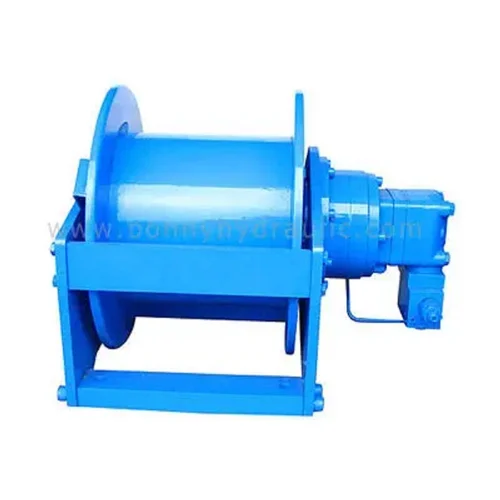

| Type of Winches | Hydraulic Winches |
| Load Capacity | 16-20 Ton |
| Capacity | 20 ton |
Product Description: Description:The winches work on simple planetary principle. Hydraulic..... View more details
Product Specification:
| Capacity | 12,000 LBS |
| Brand | DR. NANO |
| Usage/Application | Pulling |
Product Description: Equipped with a 6.0 HP series wound motor, a 3-stage planetary gear system..... View more details

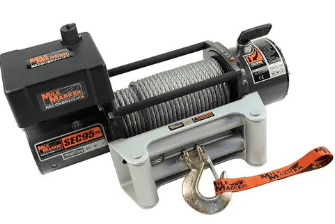

Product Specification:
| Type | Electric Winches |
| Power | 12 / 24 V |
| Thickness | 565.2 mm X 158.8 mm X 203.2 mm |
Product Description: Rated line pull: 9500 lbs (4309 Kg)Gear Train: 3 Stage PlanetaryGear..... View more details

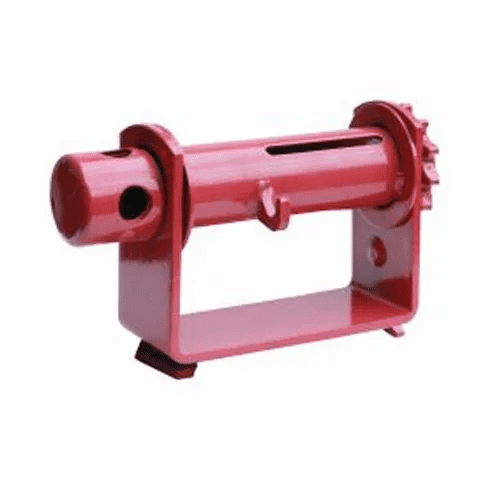

Product Specification:
| Type | Manual |
| Capacity | 250 TO 1000 KGS |
| Brand | SUREX |
Product Description: Minimum Order Quantity: 100 Piece MANUAL ROPE WINCH WITH WORM..... View more details
Product Specification:
| Power | 12 / 24 V |
| Thickness | 565.2 mm X 158.8 mm X 203.2 mm |
| Product Code | SEC 12 ES |
Product Description: Rated line pull: 12000 lbs (5443 Kg)Gear Train: 3 Stage..... View more details

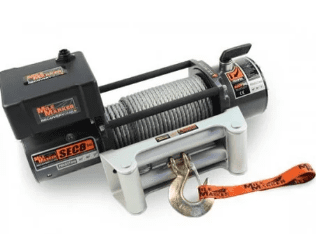

Product Specification:
| Power | 12 V |
| Thickness | 546.1 mm X 158.8 mm X 203.2 mm |
| Product Code | SEC 8 |
Product Description: Rated line pull: 8000 lbs (3629 Kg)Gear Train: 3 Stage PlanetaryGear..... View more details
Product Description: The Heavy Duty Winch is engineered to handle the most demanding lifting,..... View more details
Product Description: The Universal Winch is a versatile tool designed for a wide range of..... View more details
Your request has been successfully sent to suppliers related to the product you selected. They will review your request and contact you directly via your phone number or email. Expect a response shortly!

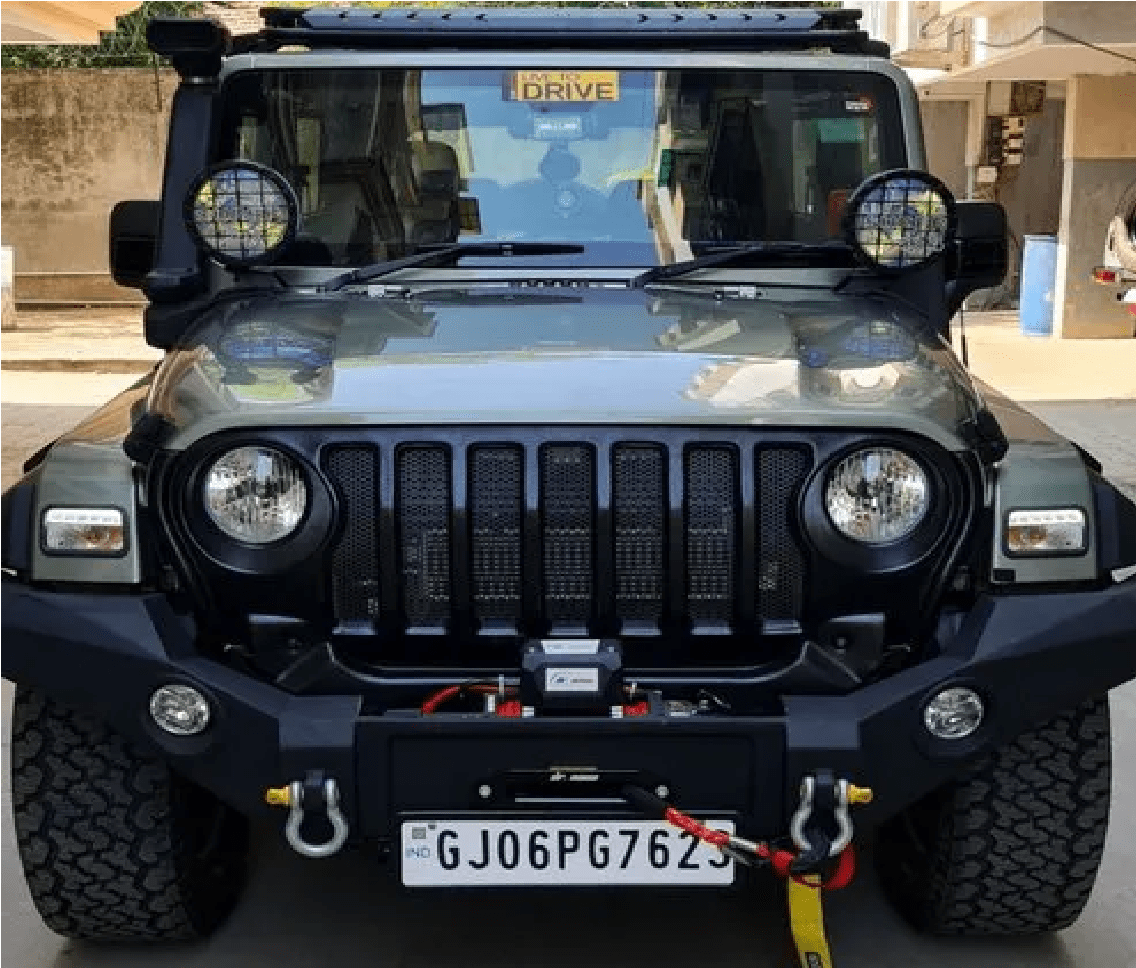

A truck winch is a mechanical attachment placed on a vehicle (generally front or back) to pull heavy loads, free stuck vehicles, or aid off-road use. It is made up of a motor, drum, cable/rope, and hook and is electrically, hydraulically, or mechanically powered.
2. Types of Truck Winches
A. Electric Winches
• Power Source: Vehicle battery (12V/24V).
• Pros: Easy to install, inexpensive, easily found.
• Cons: Consumes battery rapidly; less powerful than hydraulic.
• Best for: Light to medium-duty recovery (pickups, SUVs).
B. Hydraulic Winches
• Power Source: Power steering pump of the vehicle.
• Pros: Stronger, dependable even on heavy use.
• Cons: Complicated installation; hydraulic system required.
• Best for: Heavy-duty trucks, commercial applications.
C. PTO (Power Take-Off) Winches
• Power Source: Wired into the truck's transmission.
• Pros: Very powerful, with continuous operation.
• Cons: Costly, for heavy-duty trucks alone.
• Best for: Military, forestry, and industrial applications.
D. Portable Winches
• Power Source: Battery or hand-operated.
• Pros: No permanent mounting required.
• Cons: Limited power, manual versions take effort.
• Best for: Occasional usage, small trucks, ATVs.
Load Capacity Needs to be more than truck's weight (e.g., 8,000–15,000 lbs for full-size trucks).
Line Type Steel cable (heavy-duty) vs. synthetic rope (lighter, safer).
Motor Type series-wound (powerful) vs. permanent magnet (efficient).
Remote Control Wireless or wired for safe operation.
Water proofing Needed for off-road/muddy terrain.
Braking System Automatic load-holding brakes avoid slippage.
Vehicle Recovery – Recovering stuck trucks in mud, snow, or sand.
Towing & Hauling – Heavy equipment loading onto trailers.
Off-Roading – Necessary for rock crawling and overlanding.
Commercial Use – Construction, farming, and logging activities.
Emergency Rescue – Employed by first responders during disaster recovery.
• Warn (Premium, tough – Zeon, VR series)
• Smittybilt (Budget-friendly, reliable – X2O Gen3)
• Superwinch (Off-road capable – Talon)
• ComeUp (High-performance – *DV-9, Seal Gen2*)
• Badland (Harbor Freight) (Low-cost – ZXR 12,000 lbs)
Mounting: Make sure it is a heavy-duty bumper or winch plate.
Wiring: Install high-gauge cables on electric winches.
• Clean and grease the cable/rope periodically.
• Inspect solenoid and connections for corrosion.
• Keep synthetic rope out of UV light.
Never over-load – Double capacity using a snatch block if necessary.
Keep back – In the event of cable snapback.
Use gloves – Steel cables may be hazardous.
Check before use – Frayed cables or broken hooks.
•For light truck/SUV: 8,000–10,000 lbs electric winch.
•For heavy trucks: 12,000–16,000 lbs hydraulic/PTO.
•For hardcore off-roading: Synthetic rope + waterproofing.
Conclusion
A truck winch is an essential recovery, towing, and off-road excursion tool. Whether you require a low-cost electric winch for the occasional use or a heavy-duty PTO winch for business operations, having the correct type guarantees safety and dependability.
Need assistance in the selection of a winch for your truck? Post your vehicle and application, and I'll suggest the best possible one!
