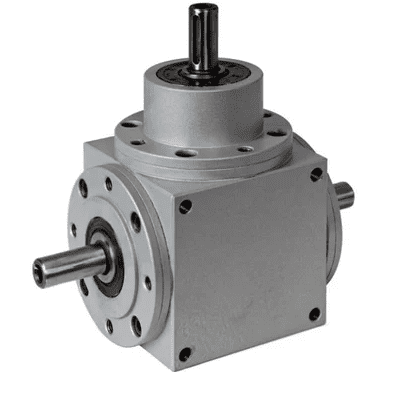

Cube Gearbox

Brand: Bevel Gears Pvt Ltd
Ask For Price

Product Description:

Industrial Bevel Gear Boxes 2 way, 3 Way & Hollow Shaft Low backlash cube gear box for...
View Complete Details
  • Product Details
  • Company Details

Product Description:

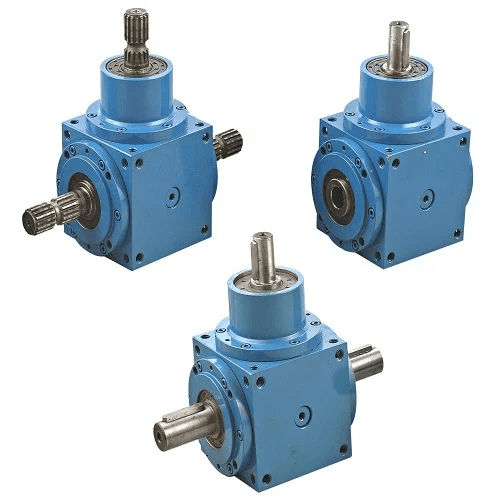

  • Industrial Bevel Gear Boxes 2 way, 3 Way & Hollow Shaft
  • Low backlash cube gear box for industrial applications
  • Housing Raw Material options:
    1. Steel
    2. Cast iron
    3. Stainless steel

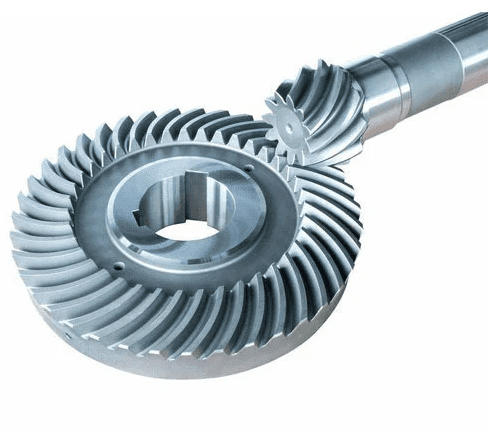

  • We use heat treated & lapped spiral Bevel Gears
  • Customized Cube Boxes Available
  • Ground Spiral Bevel Boxes are also available for high precision applications
  • Drop-in gear sets for branded gearboxes available

Gearboxes Specification:



  MODEL AND GEAR CONFIGURATION

SIZE KL-65 KL-75 KL-90 KL-100 KL-120 KL-160 KL-200
  1:1TO2:1 1:1TO2:1 1:1TO2:1 1:1TO2:1 1:1TO2:1 1:1TO2:1 1:1TO2:1
A 25 30 35 38 45 60 80
B - 2 2 3 3 3 3
C 43.5 54 55 62 75 98 120
D1 12 16 18 20 26 36 42
D2 12 16 18 20 26 36 42
D 83 85 95 110 122 160 203
E 11 11 10 13 15 18 20
F 65 75 90 100 120 160 200
G 22.5 27.5 35 40 50 60 80
H 75 80 85 110 115 150 190
I 100 110 122 150 162 212 262
M M5 M5 M8 M8 M10 M12 M12
W 4*4*20 5*5*22 6*6*28 6*6*30 8*8*35 10*10*45 12*12*65


  POWER DETAILS 1:1 RATIO

GEAR BOX DATA KL-65 KL-75 KL-90 KL-100 KL-120 KL-160 KL-200
INPUT POWER (kw) 1.0 1.5 2.2 3.0 5.0 15.0 20.2
INPUT RMP MIN 1000 1000 500 500 500 500 500
INPUT RMP MAX 3000 3000 1440 1400 1400 1440 1400
OUTPUT TORQUE MAX 10Nm 14Nm 42Nm 57Nm 96Nm 287Nm 382Nm
OUTPUT TORQUE MIN 3Nm 5Nm 15Nm 20Nm 33Nm 99Nm 133Nm
Company Description :

Quality Policy Companies depend on us so we take quality very seriously. Customers are invited to leverage our capabilities, decades of experience, testing and production facilities to develop the gearing solutions they need for demanding applications. Some of our facilities and services include: Gleason CAGE summaries Gleason TCA and LTCA options Gear Inspection Double Flank Testing Gleason roll testers CNC Gear Checking facilities at Gleason Works India and Zeiss Labs ISO 9001-2008 Certified

  • Website Url: www.bevelgearsindia.com
  • GST No. : 29AAACB5722B1Z4
  • Address : 17-B, Sadaramangala Industrial Area, Whitefield Road, Mahadevapura Post,
